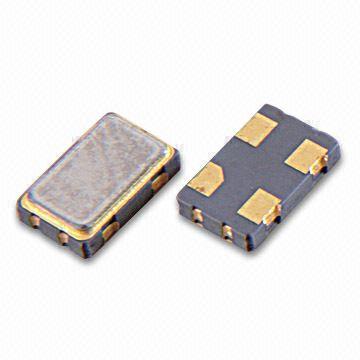

Voltage Control Crystal Oscillators （JYV05/07）

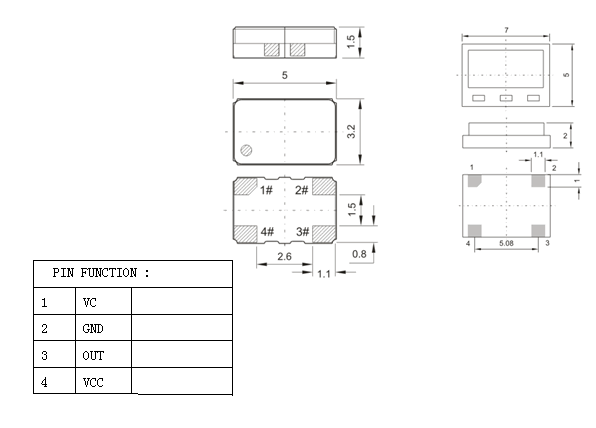

Configuration




Principal Parameters



Parameter

JYV05/07

Parameter Value

Frequency Range

10 ~ 50 Mhz

Frequency Accuracy

+/-15 PPM

Frequency Stability  vs Temperature

+/- 10 PPM ~ +/- 50 PPM

Aging

+/-3 PPM / year

Output Type

TTL / HCMOS

Supply Voltage

+3.3 V , + 5.0 VDC

Supply Current

< 20 M ：20 mA(max)  20~40M : 50 mA(max)

Adjustable Frequency Range



+/-50PPM ~ +/-100PPM

Control Voltage Range

0 ~ 3.3 V / 0 ~ 5 V

Slope

Positive

Linearity

+/- 10%
Storage Temperature Range

-50 ~ +90 ℃
Application
Mobile Communication Equipments, 3G Communication , Wireless Base Station, Repeater , GPS , GSM,CDMA ,SDH/SONT, PDH , Instruments and meters with high precision ，Electricity Measure Equipments , Specialized Network, Military Radio Stations and Radar Equipments, Remote Sensing and Consumer Electronics Products Etc .
Feature
High Stability ,Low Aging ,Small Size , Wide Temperature Range
