Compensated Crystal Oscillators ( JYT08A&JYT14A )
|

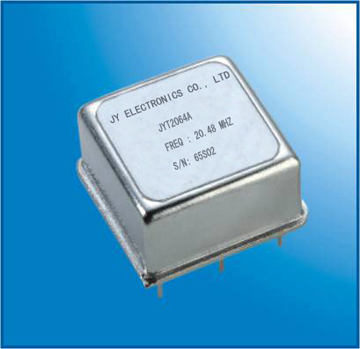

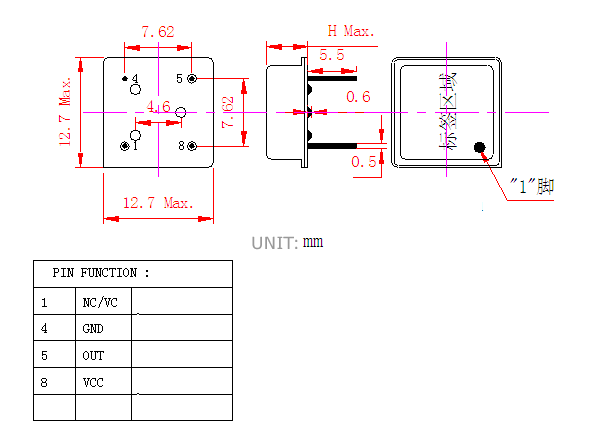

| Configuration |
|
| Principal Parameters |
|
Parameter |
JYT08A&JYT14A |
|
Parameter Value |
| Frequency Range |
JYT08A:2
~ 30 Mhz JYT14A:2
~ 200 Mhz |
| Frequency
Accuracy |
+/-0.5 PPM Max .
( Center Control Voltage ) |
| Frequency
Stability vs
Temperature |
+/-
1 PPM ~ +/- 5 PPM |
| Aging |
+/-1
PPM / year |
| Output
Type |
TTL
/ HCMOS / SINE/Clipping Sine |
| Supply
Voltage |
+3.3
V , + 5.0 VDC, 12.0 VDC |
| Frequency
Stability vs Load |
+/- 0.2 PPM vs +/- 10% load change |
| Frequency
Stability vs Voltage |
+/- 0.2 PPM vs +/- 5 % voltage change |
| Supply
Current |
JYT08A:10 mA (Typical ) , JYT14A:10 mA (Typical
) |
| Adjustable
Frequency
Range |
+/-3.0 PPM |
| Control Voltage
Range |
0 ~ 3.3 V / 0 ~ 5 V |
| Slope |
Positive |
| Linearity |
+/- 10% |
| Phase
Noise (10Mhz ) |
1kHz , -130 dBc/ Hz |
| Storage Temperature
Range |
-50 ~ +90 ℃ |
|
| Application |
| Mobile Communication Equipments, 3G Communication , Wireless
Base Station, Repeater , GPS , GSM,CDMA ,SDH/SONT, PDH , Instruments
and meters with high precision ，Electricity Measure Equipments
, Specialized Network, Military Radio Stations and Radar Equipments,
Remote Sensing and Consumer Electronics Products Etc . |
| Feature |
| High Stability ,Low Aging ,Small Size , Wide Temperature
Range |
|
|
